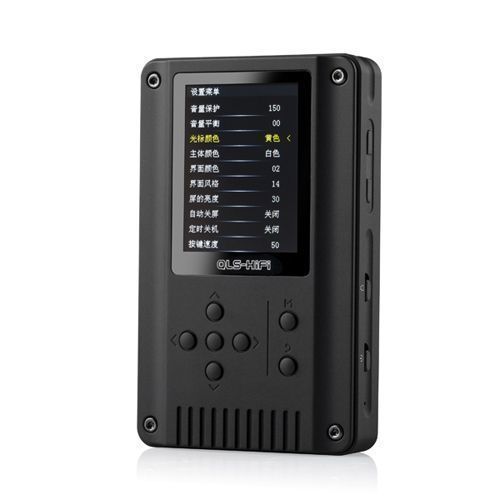

Благодаря ряду инновационных схемотехнических решений модель плеера QA-360 обладает полноценной поддержкой широкой номенклатуры современных аудиоформатов и обладает широким функционалом для использования устройства в качестве полноценного транспорта в стационарной системе.

Спецификации

- Sample median: 16Bit or 24Bit.
- Sampling rate: 44.1Khz, 48Khz, 88.2kHz, 96Khz, 176.4KHz, 192KHZ, DSD 1bit 64FS.
- Audio formats supported: WAV (up to 24Bit / 192KHz), FLAC, APE, AIFF, ALAC, DIFF, DSF, MP3, SACD ISO.
- Digital Output: Coaxial * 1 (coaxial output to 3.5, need 3.5 to RCA coaxial); fiber * 1 (fiber-hole output).
- The digital output format: PCM / Dolby Digital / DTS / DSD (DoP v1.0).
- Analog Output: Line Out 3.5 output port * 1.
- Amp output: 3.5 output port * 1.

Remote input: via optional remote control receiver cable and remote control infrared remote control (remote control and QA660, QA860 Universal)

Analog Output parameters:

- Analog output level: 2.0V RMS
- Frequency Response :0-20Khz
- Signal to noise ratio: 116dB
- Dynamic Range: 116dB
- Separation: 101dB
- THD: 0.0006%
- headphone output matching impedance: 8 Ohms - 300 Ohms
  amp maximum output Power: 490mW @ 16 Ohms , 245mW @ 32 Ohms , 55mW @ 300 Europe

- DAC: CS4398 LPF: AD8620 amp: OPA + discrete transistor amp CPI enlarge
- Battery: Ultra-low internal resistance in lithium battery 3.7V 3000-3120mAH
- External power supply or charger: DC 5V 2A (positive with respect) (treasure can be directly used to power or charge mobile   phones)

Life time: Conservative 10 hours (measured playback WAV 16bit 44.1K, the screen is set automatically turn off 10 seconds, the player has 10-20 light up the screen cut songs, several prototypes have more than 11 hours, and the other playing DSD / SACD music consumption to increase by 30%)

Charging time: 4 - 5 hours

Host Net Size : 117mmx72mmx27mm
Host weight : 260g
